What is a solar inverter
Inverters, also known as power conditioners and power regulators, are an essential part of a photovoltaic system. The main function of the photovoltaic inverter is to convert the DC power generated by the solar panels into AC power for home appliances, and all the power generated by the solar panels has to be processed by the inverter before it can be output to the outside world.
Inverter application range
Mainly used for household solar power generation,electrical appliances that drive household small power loads,etc.

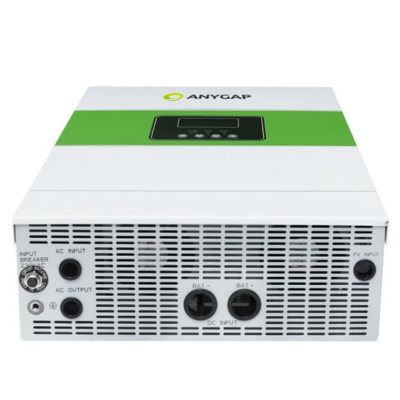

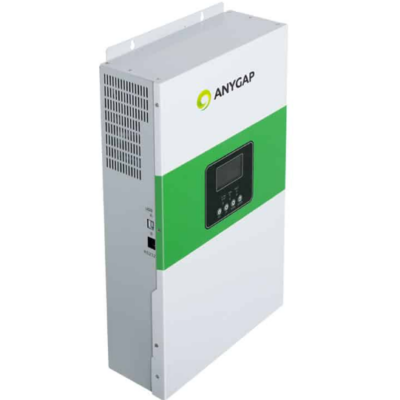

Model EOP24V3300/EOP48P5000
Features:
1.High efficiency pure since wave solar inverter
2.Output power factor
3.Inverter running without battery connecting
4.Built-in 100A MPPT solar charger
5.High PV input voltage range 120-500Vdc
6.Built-in anti-dust kit for harsh environment
7.Support lead-acid battery and lithium battery access
8.Intelligent adjustable speed fan is adopted for efficient heat dissipation and extended system life
9.Complete short circuit protection,overvoltage and undervoltage protaction,overload protection,reverse irrigation protection
10.Battery equalization function to optimize battery performance and extend life cycle
Working Schematic
Product Details
Mode | EOP24V3300 | EOP48P5000 |
Rated Power | 3500VA/3500W | 5500VA/5500W |
INPUT | ||
Voltage | 230V AC | |
Selectable Voltage Range | 170-280V AC(For Personal Computers);90-280V AC(For Home Appliances) | |
Frequency Range | 50Hz/60Hz(Auto Sensing) | |
OUTPUT | ||
AC Voltage Regulation | 230V AC±5% | |
Surge Power | 7KVA | 11KVA |
Efficiency(Peak) | UP to 93.5% | |
Transfer Time | 10ms(For Personal Computers);20ms(For Home Appliances) | |
Waveform | Pure Sine Wave | |
BATTERY | ||
Battery Voltage | 24V DC | 48V DC |
Floating Charge Voltage | 27V DC | 54V DC |
Overcharge Protection | 33V DC | 63V DC |
SOLAR CHARGER&AC CHARGER | ||
Max.PV Array Power | 5000W | 6000W |
Max.PV Array Open Circuit Voltage | 500V DC | |
MPPT Range & Operating Voltage | 120-450V DC | |
Max.Solar Charge Current | 100A | |
Max.AC Charge Current | 60A | |
PHYSICAL | ||
Package size,D*W*H(mm) | 110*302*490 | |
Net Weight(kgs) | 8.4 | 9.7 |
Communication Interface | RS232/RS485/Dry contact | |
ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | -10°C to 50°C | |
Storage Temperature | -15°C to 60°C |
About ANYGAP
Anygap New Energy Co., Ltd. (“Anygap”) is a world leader in the development of inverter and battery system solutions with over 50 GW installed worldwide by 2021. Anygap is a global leader in energy storage solutions with a wide range of products and solutions for commercial, residential, and utility-scale PV systems, energy storage systems, battery modules, mobile power stations, electric vehicle chargers, and smart energy management solutions. Its mission is to become the world’s leading battery storage provider. The company has a strong team in R&D dedicated to technology and product innovation. The R&D team, led by Mr. Li, a former General Manager at ZTE Telecom Power Supply and Photovoltaic Products and a new energy expert from Shenzhen Science and Technology Innovation Committee, is conducting research and development. The company has set up some laboratory institutes in Shenzhen, Japan, and other locations.
Anygap offers comprehensive and professional support in the areas of solar PV, battery storage, and smart energy management technology. Shenzhen, China houses Anygap advanced manufacturing plant and battery supply partnership. Anygap has the largest R&D team in the solar inverter industry dedicated to developing PV inverters in addition to a comprehensive line of PV inverters and energy storage systems for utility-scale, commercial, and residential applications as well as internationally renowned floating PV system solutions. Over 150 countries have Anygap PV products installed as a result of their 24-year history in the field.
Successful Cases
300MW ,SOLAR PLANTS was installed at Tokyo, Japan
Big FARM installed thousands of high quality 550w monocrystalline PV modules composition and mounting system with high efficiency conversion, equipped with 25% energy storage, in a 300MW solar power plant in Tokyo, Japan.
40kw,Rotterdam Netherland
40kw,Rotterdam eight EOP 5000 inverters track the max convert Transformation are chosen by a household in Rotterdam,Netherland for their roof pv panels with off-grid residential storage inverters system. Anygap EOP PV inverters and battery EHB48100PB for residential solar plants.
3MW,Karachi,Pakistan
10 EGS was choosen by industrial park in Karachi ,Pakistan for commercial solar plants,EGS Series-30KW 20KW 15KW Commercial Storage System
500MW, Capital , Myanmar
500MW Government solar plants was installed by Anygap solar plants sytem with 10% batteries with integrated technology 40foot container system of 1.75MWh batteries as backup
etc.....
