توربينات الرياح من النوع L بفئة الرياح 1000W-3000W

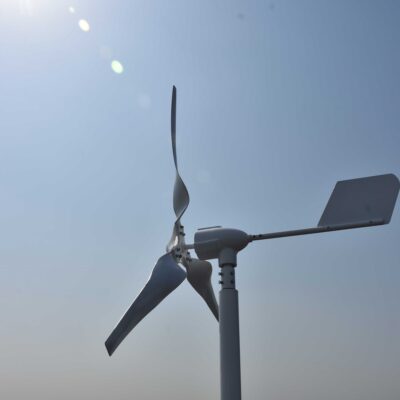

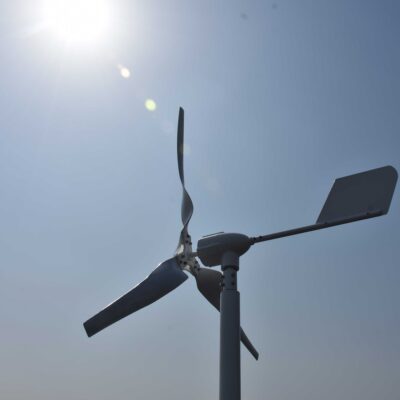

L type wind turbine with its wind class 1000W-3000W's Product features
1.Casting aluminum alloy body,compact,little vibration;
2.Excelenr output,900w at 8m/s;
3.Easy installation,tube or flange connection optional;
4.Reinforced glass fiber blades,matched with optimized aerodynamic shape and structure,
which enhance the wind energy utilization and annual output;
5.Tail adopts mechanical yaw technique,making it survive storm and run safety;
6.Patended permanent magnet ac generator with special stator,effectively reduce torque,
well match the wind wheel and generator,and ensure the performance of whole system;
7.Controller,inverter can be matched accroding to customers'specific needs.
L type 1000w-3000w
Model | NE-1000L1 | NE-1500L1 | NE-2000L1 | NE-2000L2 | NE-2500L2 | NE-3000L2 |
Rated power | 1000W | 1500W | 2000W | 2000W | 2500W | 3000W |
Maximum power | 1200W | 1700W | 2300W | 2300W | 2800W | 3000W |
Rated voltage | 48V | 48V | 48V/96V | 48V/96V | 48V/96V | 48V/96V |
Start up wind speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s |
Rated wind speed | 11m/s | 11m/s | 11m/s | 11m/s | 11m/s | 11m/s |
سرعة الرياح البقاء على قيد الحياة | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s |
Top net weight | 43kg | 46kg | 50kg | 53kg | 56kg | 60kg |
Wheel diameter | 2.55m | 2.85m | 3.15m | 3.42m | 3.66m | 3.98m |
Blades number | 3 | |||||
Blades material | Reinforced glass fiber | |||||
Generator | Three phase permanent magnet ac generator | |||||
Magnetic steel | NdFeB | |||||
Generator case | Die-casting aluminum | |||||
Control system | Electromagnet/ wind wheel yaw | |||||
Speed regulation | Automatically adjust windward | |||||
Working temperature | -40℃~80℃ | |||||
Lubrication | Grease injection |
